Full featured ignition from MSD that delivers quality at a budget price.
The Street Fire Capacitve Discharge Ignition is perfect for performance enthusiasts with a tight budget. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that last for 20° of crankshaft rotation when the engine is running at lower rpm. This ensures combustion of the air/fuel mixture and produces great throttle response and smooth idle. The CDI is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. An adjustable rev limiter will protect the engine in the event of driveline failure. This rpm is adjustable with rotary dials in 100 rpm increments. If you have a 4, 6 or 8-cylinder engine, the Street Fire CDI will connect and fire it up! Covered by CARB E.O. # D-40-43
The Street Fire Capacitve Discharge Ignition is perfect for performance enthusiasts with a tight budget. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that last for 20° of crankshaft rotation when the engine is running at lower rpm. This ensures combustion of the air/fuel mixture and produces great throttle response and smooth idle. The CDI is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. An adjustable rev limiter will protect the engine in the event of driveline failure. This rpm is adjustable with rotary dials in 100 rpm increments. If you have a 4, 6 or 8-cylinder engine, the Street Fire CDI will connect and fire it up! Covered by CARB E.O. # D-40-43

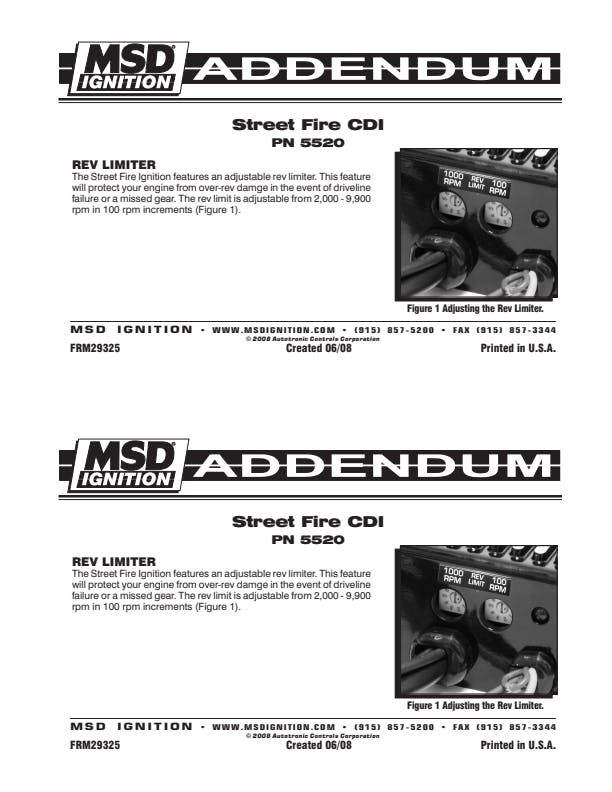

- Adjustable rev limiter for overrev protection
- .7 Amp per 1,000 RPM
Information:
CARB E.O. # D-40-43| Attributes | |
| ASIN | B001O28622 |
| Brand | MSD |
| C.A.R.B. EO # | D-40-43 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Ignition, Ignition |
| Connector Gender | Male Female, Male Female |
| Connector Quantity | 3, 3 |
| Country of Origin (Primary) | CN |
| Current Draw | .7 Amp per 1000 RPM, .7 Amp per 1,000 RPM |
| Emission Code | 1, 1, Legal US |
| Grade Type | Performance, Performance |
| Harmonized Tariff Code (Schedule B) | 8511804000 |
| Hazardous Material Code | N |
| Height | 2.1, 2.1 |
| Ignition Type | Performance, Performance |
| Length | 7.5, 7.5 |
| Life Cycle Status Code | Available to Order |
| Maximum RPM | 9,900, 9,900 |
| Mount Type | Surface Mount, Surface Mount |
| NAFTA Preference Criterion Code | B |
| part type | Ignition Control Module |
| Primary Voltage | 435, 435 Volts |
| Product Type | Ignition Box, Ignition Box |
| RPM | 15000 |
| RPM Range | 9,900 RPM |
| SDR Required Flag | N |
| Secondary Voltage | 43000, 43,000 Volts |
| Series | Street Fire Ignition Box |
| Spark Duration | 20 Degree Crankshaft Rotation |
| Spark Energy | 95 mJ per spark, 95mJ |
| Spark Energy (mJ per spark) | 95, 95 |
| Sub Category | Control Modules, Control Modules |
| Subcategory | Ignition Boxes |
| Terminal Gender | Male Female, Male Female |
| Terminal Quantity | 12, 12 |
| Voltage | 10-18 V; Negative Ground |
| Voltage Required | 9-18, 9-18 |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty Time | 12 |
| Width | 5.6, 5.6 |
| GTIN | 00085132055203 |
